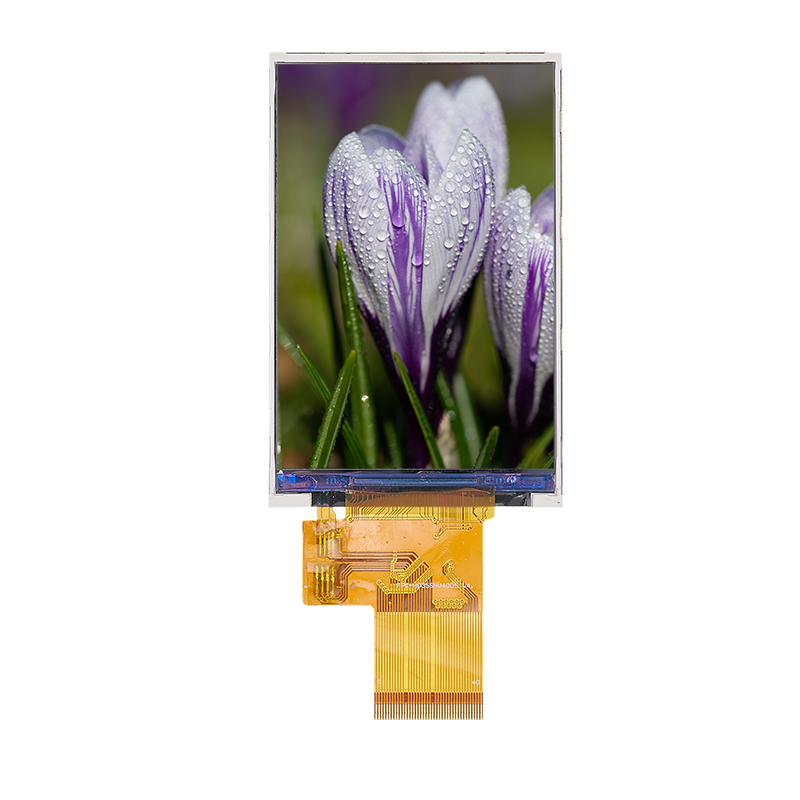

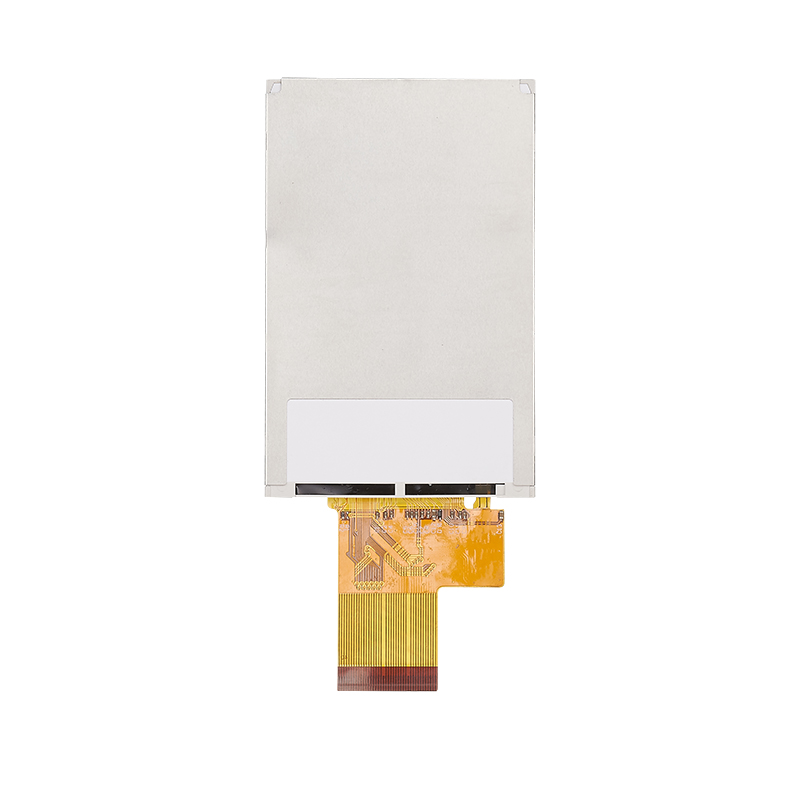

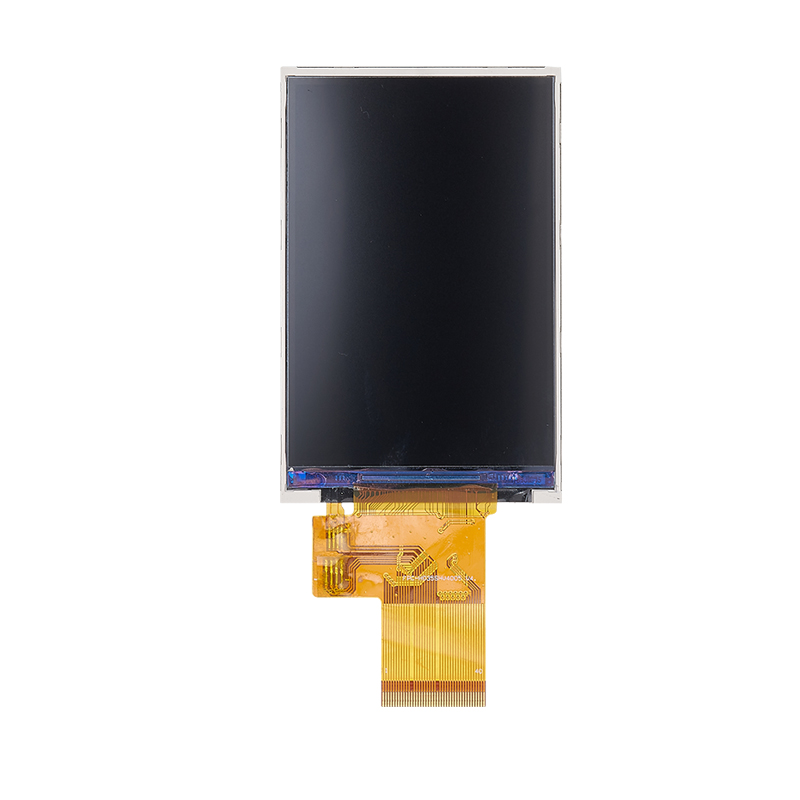

3.5寸液晶屏 豎屏 320*480 MCU接口 全視角/寬視角 TFT彩屏 3.5寸液晶顯示模組
型號：H035SHV40I3505
尺寸：3.5 inch
分辨率： 320(RGB) × 480
接口方式：40pin 18bit MCU
外觀尺寸（顯示區域）：54.94*85.5*2.2（48.96 x 73.44）
亮度：350 nits
服務熱線：139-2345-7816（雷總）
按需求定制
質量保障
品牌認證
當前位置：首頁 > 產品中心
型號：H035SHV40I3505
尺寸：3.5 inch
分辨率： 320(RGB) × 480
接口方式：40pin 18bit MCU
外觀尺寸（顯示區域）：54.94*85.5*2.2（48.96 x 73.44）
亮度：350 nits
按需求定制
質量保障
品牌認證
產品參數
產品圖紙
尺寸、接口等規格均可定制，可配電容觸摸、電阻觸摸。如有其它規格需求請聯系我們，我們將竭誠為您服務。
一、產品參數：
Size | 3.5inch |
Resolution | 320(horizontal)*480(Vertical) |
Interface | MCU interface |
Connect type | |
Color Depth | 262K |
Technology type | a-Si |
Display Spec. Pixel pitch (mm) | 0.153x 0.153 |
Pixel Configuration | R.G.B. Vertical Stripe |
Display Mode | Normally Black |
ILI9488 | |
Surface Treatment | HC |
Viewing Direction | ALL |
LCM (W x H x D) (mm) | 54.94*85.5*2.2 |
Active Area(mm) | 48.96 x 73.44 |
With /Without TSP | Without TSP |
Weight (g) | TBD |
LED Numbers | 6 LEDs |
二、產品接口定義：
No. | Symbol | Description |
1 | GND | System Ground |
2~5 | DB0~DB3 | Data bus |
6 | GND | System Ground |
7 | VDD | Digital power supply. 2.8V |
8 | CS | Chip select pin |
9 | RS | A register select signal. |
10 | WR | Write signal pin |
11 | RD | Read signal pin |
12 | NC | |
13 | YU | Touch panel signal |
14 | XL | Touch panel signal |
15 | YD | Touch panel signal |
16 | XR | Touch panel signal |
17 | LEDA | Backlight LED Anode. |
18 | LEDK | Backlight LED Cathode |
19 | LEDK | Backlight LED Cathode |
20 | LEDK | Backlight LED Cathode |
21 | LEDK | Backlight LED Cathode |
22 | NC | / |
23~31 | DB4~DB15 | Data bus |
32 | RESET | Reset signal pin |
33 | VDD | Digital power supply. 2.8V |
34 | VDD | Digital power supply. 2.8V |
35 | GND | System Ground |
36 | DB5~DB7 | Data bus |
39~40 | GND | System Ground |
三、產品尺寸圖紙
