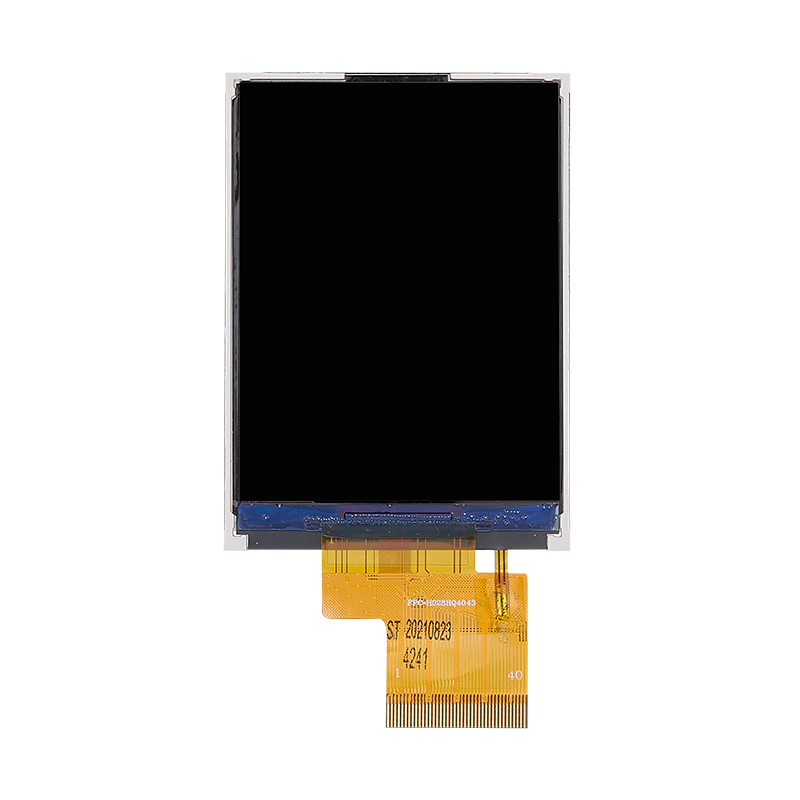

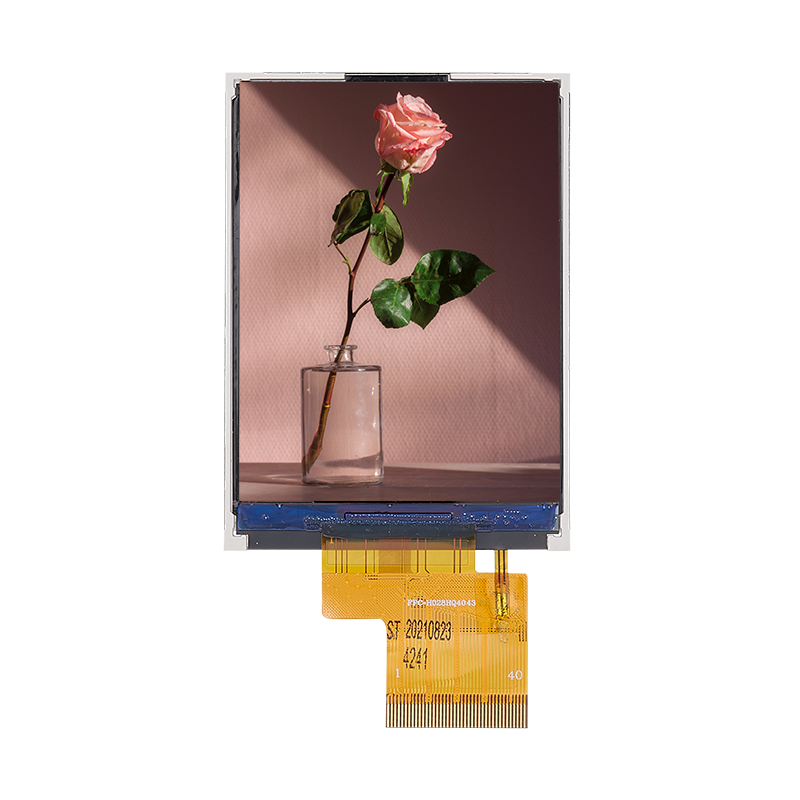

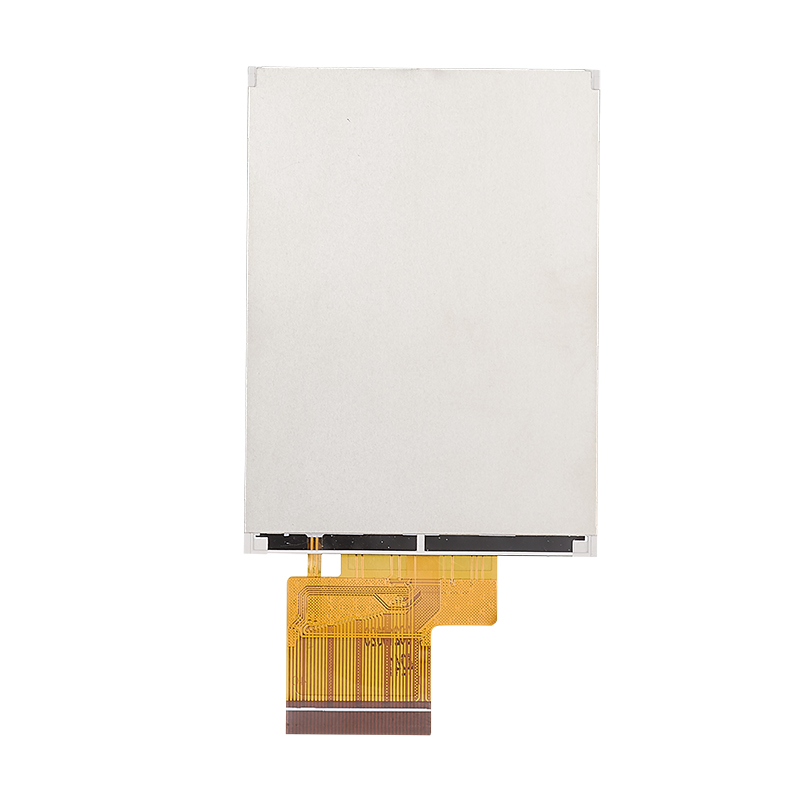

2.8寸顯示屏 240*320分辨率 40pin RGB接口 2.8寸TFT LCD液晶模組
型號：H028HQ40E2543
尺寸：2.8 inch
分辨率： 240(RGB) × 320
接口方式：40pin 16bit RGB
外觀尺寸（顯示區域）：51.80*82.54*3.25（43.2*57.6）
亮度：250 nits
服務熱線：139-2345-7816（雷總）
按需求定制
質量保障
品牌認證
當前位置：首頁 > 產品中心
型號：H028HQ40E2543
尺寸：2.8 inch
分辨率： 240(RGB) × 320
接口方式：40pin 16bit RGB
外觀尺寸（顯示區域）：51.80*82.54*3.25（43.2*57.6）
亮度：250 nits
按需求定制
質量保障
品牌認證
產品參數
產品圖紙
尺寸、接口等規格均可定制，可配電容觸摸、電阻觸摸。如有其它規格需求請聯系我們，我們將竭誠為您服務。
一、產品參數：
Size | 2.8inch |
Resolution | 240(horizontal)*320(Vertical) |
Interface | RGB |
Connect type | Connector |
Display Colors | 65K |
Technology type | a-Si |
Pixel pitch (mm) | 0.180x 0.180 |
Pixel Configuration | R.G.B.Stripe |
Display Mode | Normally White |
ST7789V | |
Viewing Direction | 6 O'clock |
Gray Scale Inversion Direction | 12 O'clock |
LCM (W x H x D) (mm) | 50*69.2*2.3 |
Active Area(mm) | 43.2*57.6 |
With /Without TSP | Without |
Weight (g) | 13 g |
LED Numbers | 4LEDs |
二、產品接口定義：
PIN NO | PIN NAME | DESCRIPTION |
1 | LEDA | LED backlight anode |
2 | LEDA | LED backlight anode |
3 | LEDK | LED backlight Cathode |
4 | LEDK | LED backlight Cathode |
5 | GND | Ground |
6 | VDD | power supply |
7 | GND | Ground |
8 | CLK | Dot-clock signal and oscillator source |
9 | HS | Line Synchronous Signal |
10 | VS | Frame Synchronous Signal |
11 | DE | Display enable signal |
12 | GND | Ground |
13 | GND | Ground |
14 | B0 | Data bus |
15
| B1 | Data bus |
16 | B2 | Data bus |
17
| B3 | Data bus |
18 | B4 | Data bus |
19 | B5 | Data bus |
20 | GND | Ground |
21 | GND | Ground |
22 | G0 | Data bus |
23 | G1 | Data bus |
24 | G2 | Data bus |
25 | G3 | Data bus |
26 | G4 | Data busl |
27 | G5 | Data bus |
28 | GND | Data bus |
29 | GND | Data bus |
30 | R0 | Data bus |
31
| R1 | Data bus |
32 | R2 | Data bus |
33 | R3 | Data bus |
34 | R4 | Data bus |
35 | R5 | Data bus |
36 | GND | Ground |
37 | RESET | Reset signal input terminal, active at ‘L' |
38 | SDA | Serial Data |
39 | SCL | Serial Clock. |
40 | CS | Chip select |

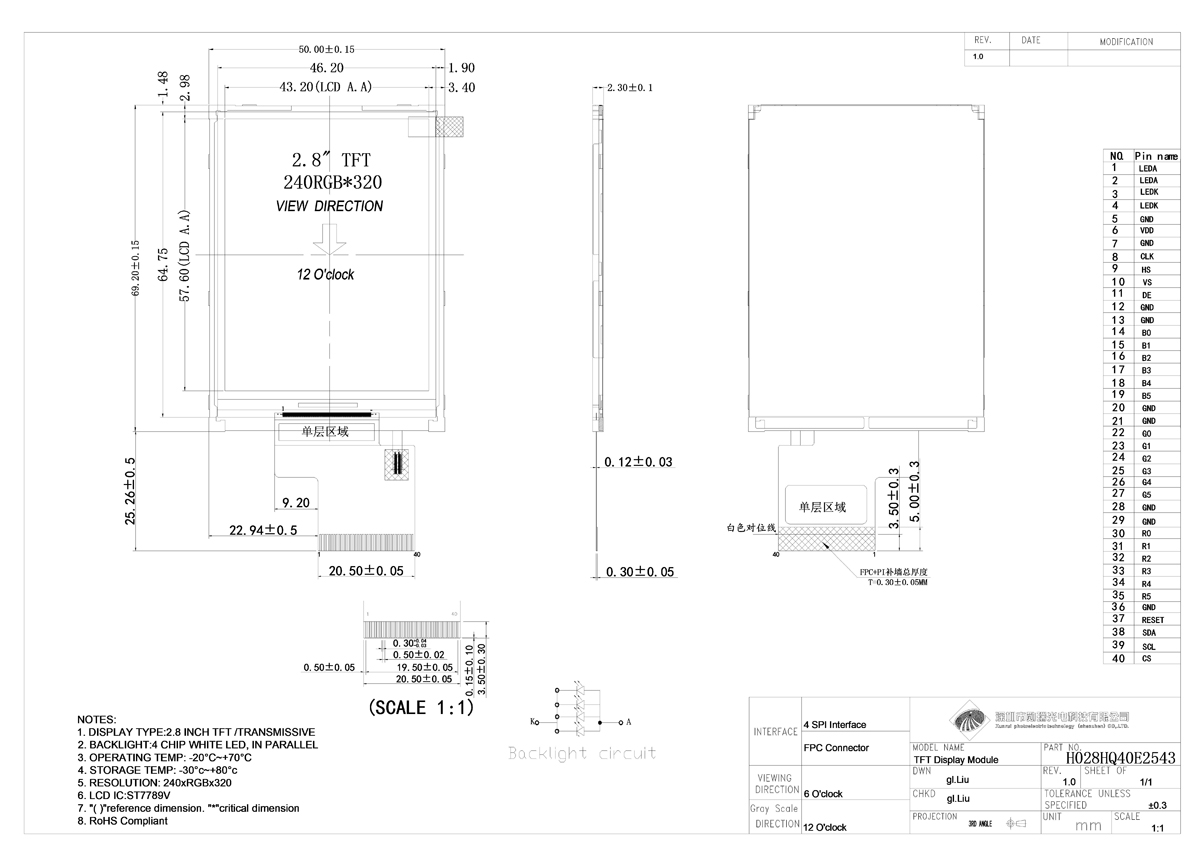

三、產品尺寸圖紙
