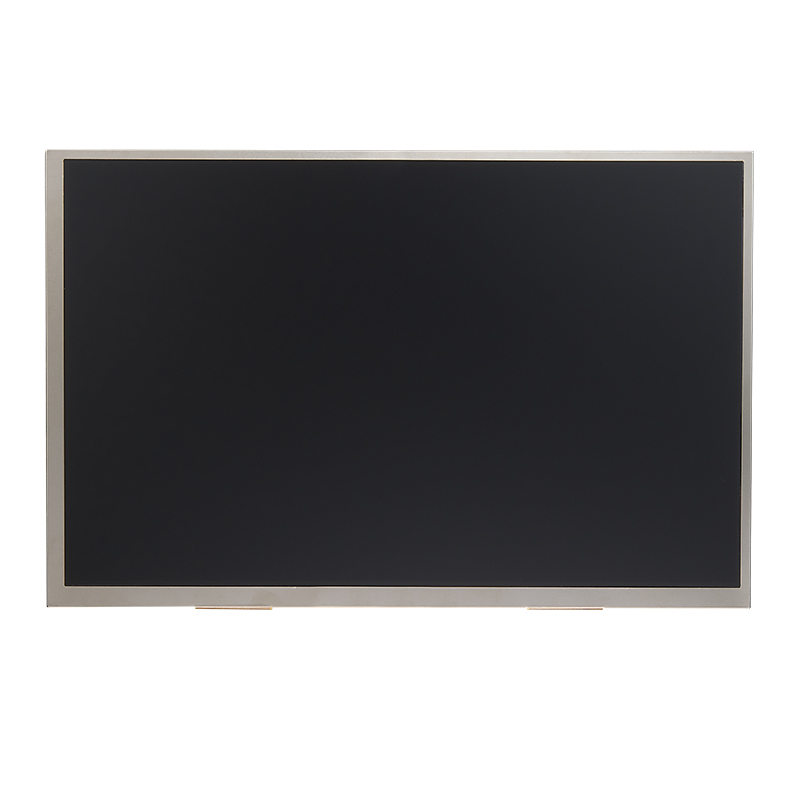

型號：H101IFH40I3516

尺寸：10.1 inch

分辨率： 1280(RGB) × 800

接口方式：40pin LVDS

外觀尺寸（顯示區(qū)域）：229.06*148.7*2.65（216.96x 135.6）

亮度：350 nits

按需求定制

質量保障

品牌認證

在線咨詢

產品參數

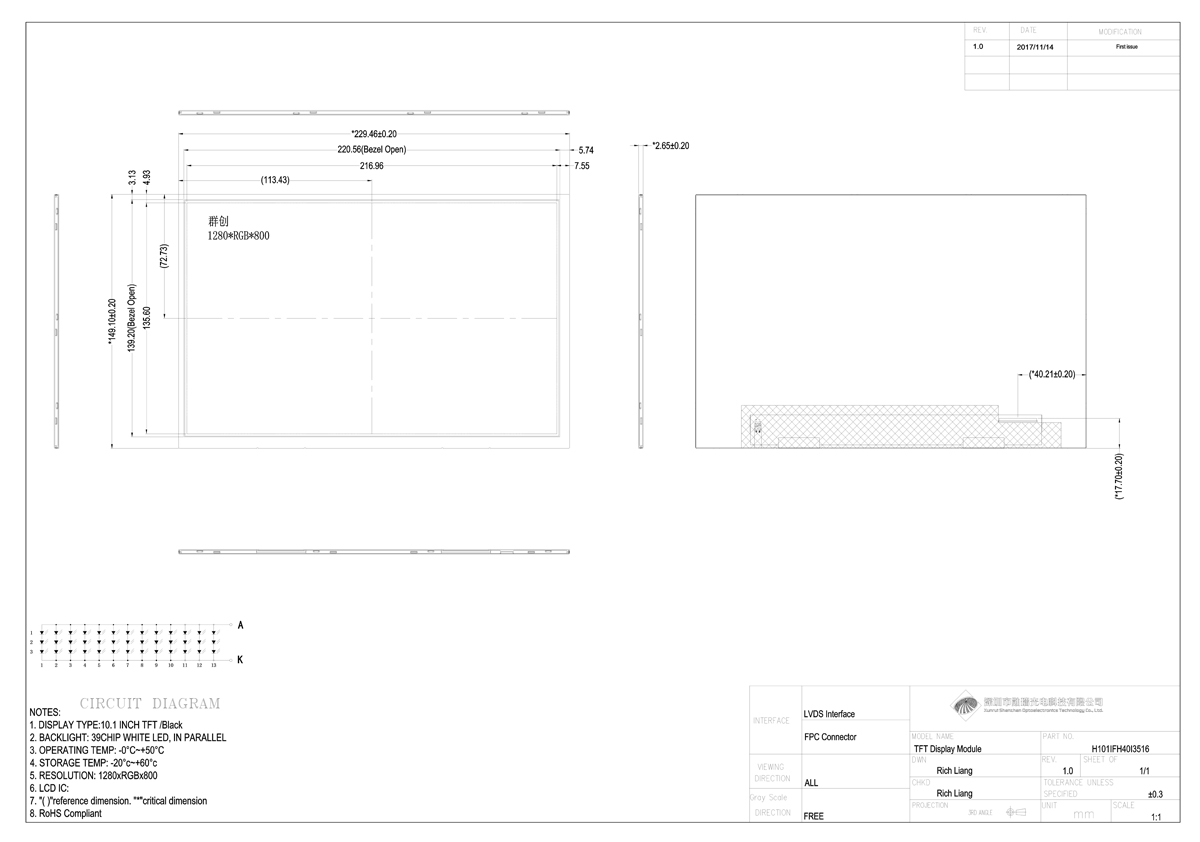

產品圖紙

尺寸、接口等規(guī)格均可定制，可配電容觸摸、電阻觸摸。如有其它規(guī)格需求請聯系我們，我們將竭誠為您服務。

一、產品參數：

二、產品接口定義：

No.	Symbol	Description
1	VCOM	Common Voltage
2	VDD	Power Voltage for digital circuit
3	VDD	Power Voltage for digital circuit
4	NC	No connection
5	NC	No connection
6	NC	No connection
7	GND	Ground
8	RXIN0-	-LVDS differential data input
9	RXIN0+	+LVDS differential data input
10	GND	Ground
11	RXIN1-	-LVDS differential data input
12	RXIN1+	+LVDS differential data input
13	GND	Ground
14	RXIN2-	-LVDS differential data input
15	RXIN2+	+LVDS differential data input
16	GND	Ground
17	RXCLKIN-	-LVDS differential clock input
18	RXCLKIN+	+LVDS differential clock input
19	GND	Ground
20	RXIN3-	-LVDS differential data input
21	RXIN3+	+VDS differential data input
22	GND	Ground
23	NC	No connection
24	NC	No connection
25	GND	Ground
26	NC	No connection
27	NC	No connection
28	NC	No connection
29	AVDD	Power for Analog Circuit
30	GND	Ground
31	LED-	LED Cathode
32	LED-	LED Cathode
33	NC	No connection
34	NC	No connection
35	VGL	Gate oFF Voltage
36	NC	No connection
37	NC	No connection
38	VGH	Gate ON Voltage
39	LED+	LED Anode
40	LED+	LED Anode
